| Brand Name : | XSD Cable |
| Model Number : | Single Conductor Wire |
| Certification : | UL,CE,ISO:9001 |
| Price : | Negotiate |
| Delivery Time : | 7-14days |
| Payment Terms : | T/T |
| Supply Ability : | 1000000Meter/month |

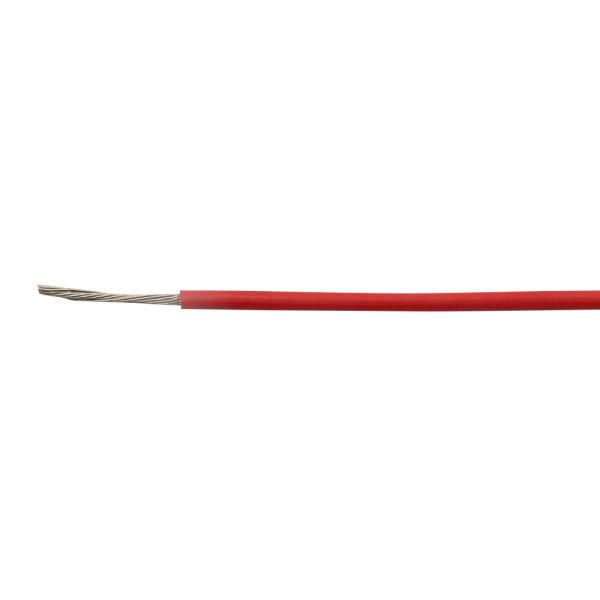

UL3386 Electric Hook Up Wire XLPE Insulated Single Conductor
Rated Voltage: 600V
Rated Temperature: 105ºC
Insulation Material: XLPE
Conductor: Tinned or Bare, Stranded or Solid Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Max. Cond. Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 30 | 7/0.10 | 0.30 | 0.80 | 1.90 | 381.00 |
| 28 | 7/0.127 | 0.38 | 0.80 | 1.98 | 239.00 |
| 26 | 7/0.16 | 0.48 | 0.80 | 2.08 | 150.00 |
| 24 | 11/0.16 | 0.61 | 0.80 | 2.21 | 94.20 |
| 22 | 17/0.16 | 0.76 | 0.80 | 2.36 | 59.40 |
| 20 | 26/0.16 | 0.94 | 0.80 | 2.54 | 37.40 |
| 18 | 41/0.16 | 1.18 | 0.80 | 2.78 | 23.50 |
| 16 | 26/0.254 | 1.50 | 0.80 | 3.10 | 14.70 |
| 14 | 41/0.254 | 1.90 | 0.80 | 3.50 | 9.25 |
| 12 | 65/0.254 | 2.40 | 0.80 | 4.00 | 5.75 |
| 10 | 105/0.254 | 3.00 | 0.80 | 4.60 | 3.62 |
| ※The above datasheet is for reference only, please refer to the final specification. | |||||
Our Single Conductor Wire is carefully packaged and shipped to ensure its safe arrival at your location. We take great care in packaging our products to prevent any damage during transportation.
The wire is wrapped in a protective material and placed in a sturdy cardboard box. The box is then sealed with tape to prevent any moisture or dirt from entering.
We offer various shipping options to best suit your needs. Our standard shipping method is through reliable courier services, ensuring prompt and secure delivery. We also offer express shipping for urgent orders.
For international orders, we carefully comply with all custom regulations to ensure smooth delivery. We provide all necessary documentation and certifications for customs clearance.
Once your order is shipped, we will provide you with a tracking number so you can easily track your package's delivery status.
At Single Conductor Wire, we strive to provide a hassle-free and efficient packaging and shipping process to ensure your satisfaction with our product.
|
|
