| Brand Name : | XSD Cable |
| Model Number : | Single Conductor Wire |
| Certification : | UL,CE,ISO:9001 |
| Price : | Negotiate |
| Delivery Time : | 7-30days |
| Payment Terms : | T/T |
| Supply Ability : | 1000000Meter/month |

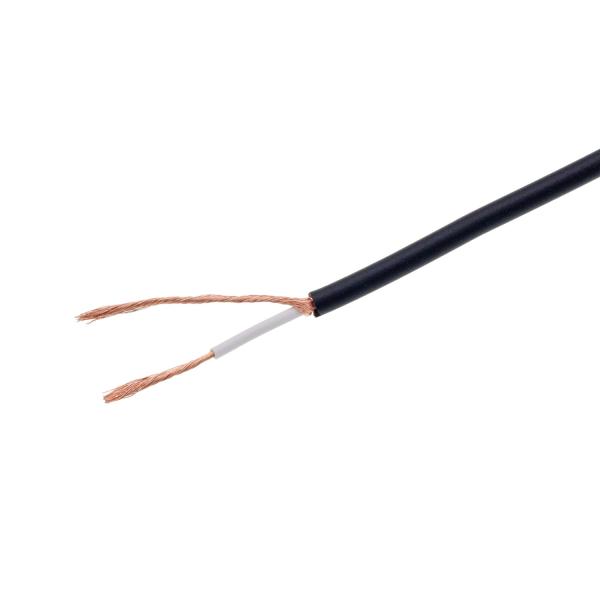

UL1185 Single Conductor Spiral Shielded Wire
① Rated temperature: 80ºC
② Rated voltage: 300V
③ Reference Standard: UL758, UL1581, C22.2 No.210
④ Passes UL VW-1 & CSA FT1 vertical flame test.
⑤ Uniform insulation thickness of wire to ensure easy stripping and cutting.
⑥ For internal wiring of electronic and electrical equipment and appliance, such as studios, sound systems, circuits and power adaptor for PC.
| Conductor | Insulation | Spiral Shield | Jacket | Max. Cond Resistance at 20°C (Ω/km) | |||||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 28 | 7/0.127 | 0.38 | 0.43 | 1.24 | 38/0.1 | 1.44 | 0.45 | 2.34 | 239 |
| 26 | 7/0.16 | 0.48 | 0.43 | 1.34 | 45/0.1 | 1.54 | 0.45 | 2.44 | 150 |
| 24 | 11/0.16 | 0.61 | 0.43 | 1.47 | 46/0.1 | 1.67 | 0.46 | 2.58 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.43 | 1.62 | 54/0.1 | 1.82 | 0.46 | 2.74 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.43 | 1.80 | 56/0.1 | 2.00 | 0.46 | 2.92 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.43 | 2.04 | 64/0.1 | 2.24 | 0.46 | 3.16 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.43 | 2.36 | 74/0.1 | 2.56 | 0.46 | 3.48 | 14.6 |
Q:Is the quality of your product guaranteed?
A:Yes, our workshop are equipped with Brand-new and Advanced
Machines and Test Equipment. Our production process and quality are
in strictly accordance with the international standards and
customers’ requirements. We are warmly welcome your inspection team
to examine.
Q:How could I pay?
A:We prefer T/T or L/C at sight. If you prefer other payment terms,
please contact us freely.
Q:Can I get a free sample?
A:Yes, we can provide the existing item’s sample without charge but
freight collected. If there is any special samples requirement,
please contact us for more details.
Q:Are you a manufacturer?
A:Yes, we are a manufacturer located in Dongguan city of China. We
can provide OEM/ODM services for customers around the world.
|
|
