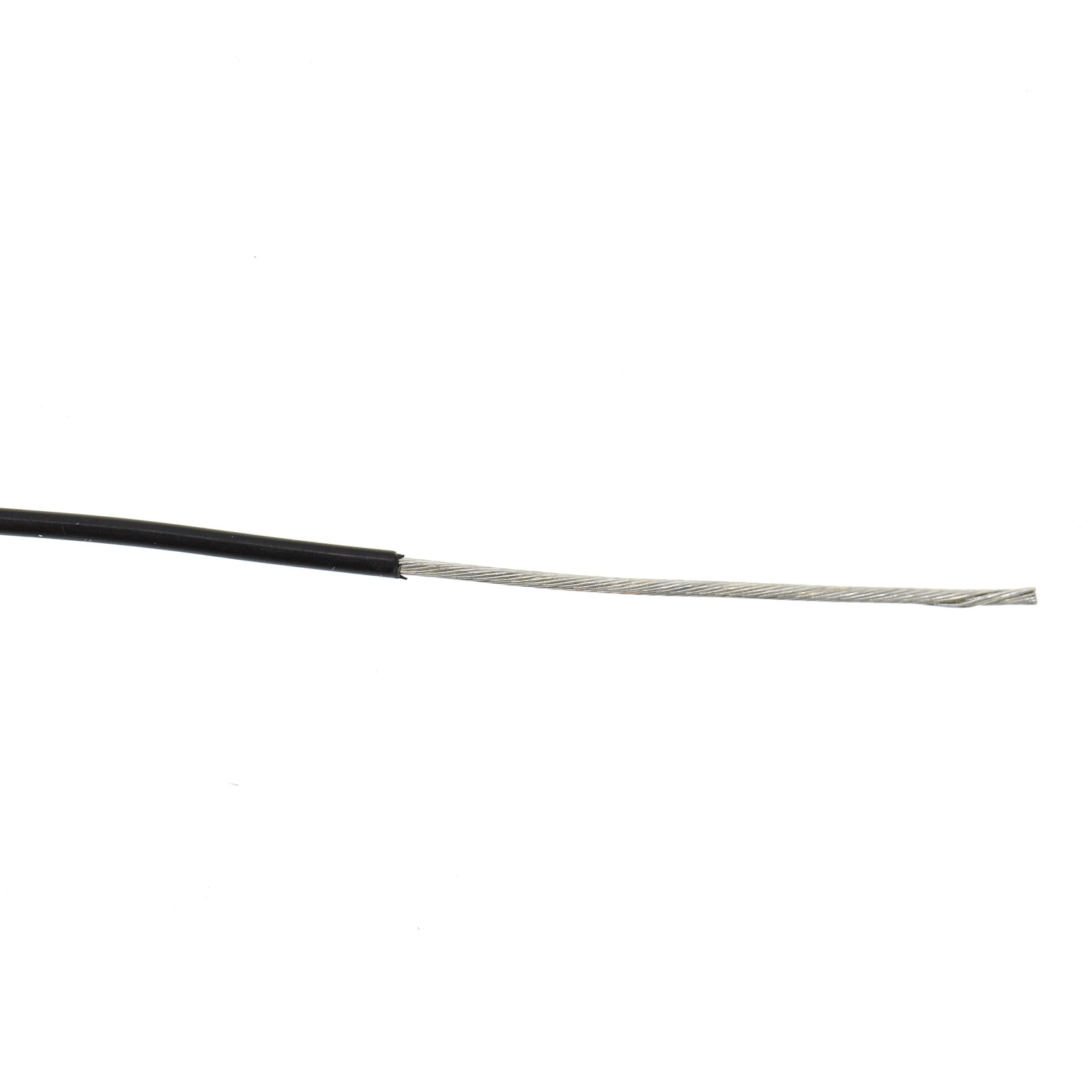

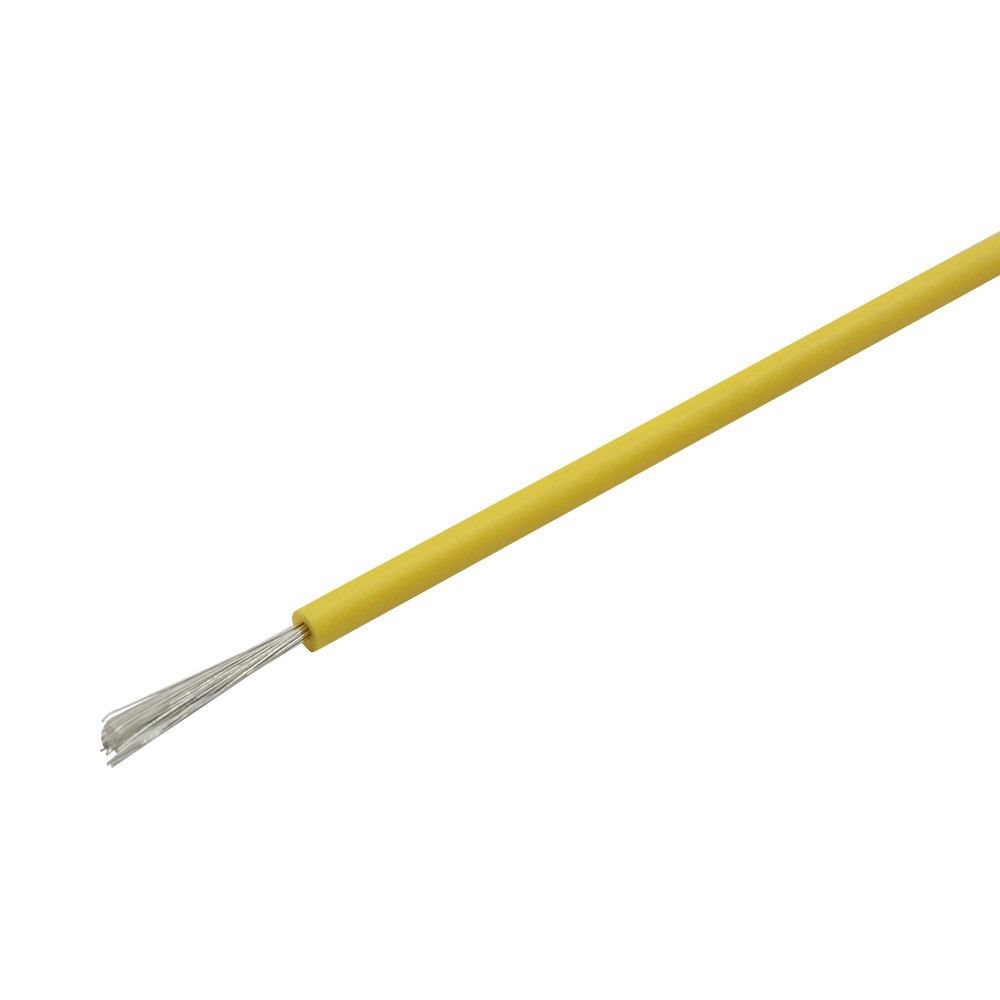

UL1331 FEP 150℃ 600V 26AWG High Temperature Electric Wire
Cable
Assembly Manufacture.pdf
Cable
Assembly Supplier.pdf
Rated Voltage: 600V
Rated Temperature: 150ºC
Insulation Material: FEP
Conductor: Tinned Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of home appliance, lighting, heater, motor, generator, UAV, robot, industrial equipment, wiring circuits, control circuits, etc.
| Conductor | Insulation | Max. Cond. Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 28 | 7/0.12 | 0.38 | 0.50 | 1.38 | 239.00 |
| 26 | 7/0.16 | 0.48 | 0.50 | 1.48 | 150.00 |
| 24 | 19/0.12 | 0.60 | 0.50 | 1.60 | 94.20 |
| 22 | 19/0.15 | 0.75 | 0.50 | 1.75 | 59.40 |
| 20 | 19/0.19 | 0.93 | 0.50 | 1.93 | 36.70 |
| 18 | 19/0.235 | 1.17 | 0.50 | 2.17 | 23.20 |
| 16 | 19/0.30 | 1.50 | 0.50 | 2.50 | 14.60 |
| 14 | 19/0.37 | 1.85 | 0.50 | 2.85 | 8.96 |
| 12 | 19/0.47 | 2.35 | 0.50 | 3.35 | 5.64 |
| ※The above datasheet is for reference only, please refer to the final specification. | |||||
