professional manufacturer in the field of wire and cable assembly
3 Years
| Ask Lasest Price | |
| Brand Name : | XSD Cable |
| Model Number : | Flat cable |
| Certification : | UL,CE,ISO:9001 |
| Price : | Negotiate |
| Delivery Time : | 7-30days |
| Payment Terms : | T/T |
| Supply Ability : | 200000pcs/month |
| Conductor | Insulation | Max. Cond. Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 28 | 1/0.32 7/0.12 | 0.32 0.36 | 0.305 0.305 | 0.87 0.91 | 381.00 |
| 26 | 7/0.16 19/0.10 | 0.48 0.48 | 0.305 0.305 | 1.09 1.11 | 150.00 |
| 24 | 1/0.50 7/0.20 19/0.12 | 0.5 0.6 0.6 | 0.305 0.305 0.305 | 1.11 1.21 1.21 | 94.20 |
| 22 | 1/0.65 7/0.254 19/0.15 | 0.65 0.76 0.75 | 0.33 0.33 0.33 | 1.31 1.42 1.41 | 59.40 |
| 20 | 1/0.81 7/0.31 26/0.16 | 0.81 0.93 0.93 | 0.33 0.33 0.33 | 1.47 1.59 1.59 | 36.70 |
| 18 | 1/1.02 7/0.39 19/0.235 | 1.02 1.17 1.17 | 0.33 0.33 0.33 | 1.68 1.83 1.83 | 23.20 |
| 16 | 1/1.30 7/0.49 19/0.30 | 1.30 1.47 1.50 | 0.33 0.33 0.33 | 1.96 2.13 2.16 | 14.60 |
| 14 | 19/0.37 | 1.85 | 0.33 | 2.51 | 8.96 |
| ※The above datasheet is for reference only, please refer to the final specification. | |||||

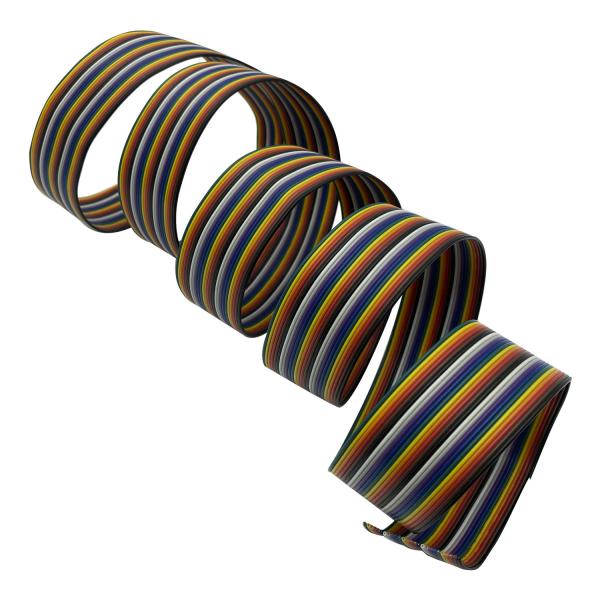

Flat Rainbow Electric Cable FEP High Temperature 150℃ OEM
Rated voltage: 300V
Rated temperature: 150ºC
Insulation Material: FEP
Conductor: Tinned Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of home appliance, lighting, heater, motor, generator, UAV, robot, industrial equipment.
|
|
