professional manufacturer in the field of wire and cable assembly
3 Years
| Ask Lasest Price | |
| Brand Name : | XSD Cable |
| Model Number : | Flat cable |
| Certification : | UL,CE,ISO:9001 |
| Price : | Negotiate |
| Delivery Time : | 7-30days |
| Payment Terms : | T/T |
| Supply Ability : | 200000pcs/month |

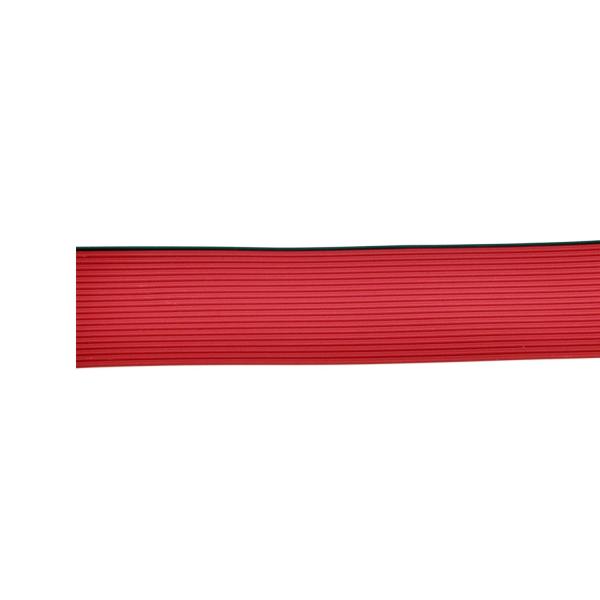

UL21016 XLPE Flat Ribbon Cable Red High Temp AWM Flat Cable
Rated Voltage: 300V
Rated Temperature: 105ºC
Insulation Material: XLPE
Conductor: Tinned or Bare, Stranded or Solid Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Max. Cond. Resistance at 20°C (Ω/km) | ||
| AWG | Construction (No./mm) | Diameter (mm) | Diameter (mm) | |
| 2 | 28 | 7/0.127 | 0.90x1.90 | 239 |
| 3 | 28 | 7/0.127 | 0.90x2.90 | 239 |
| 4 | 28 | 7/0.127 | 0.90x3.90 | 239 |
| 5 | 28 | 7/0.127 | 0.90x4.90 | 239 |
| 2 | 26 | 7/0.16 | 1.00x2.10 | 150 |
| 3 | 26 | 7/0.16 | 1.00x3.20 | 150 |
| 4 | 26 | 7/0.16 | 1.00x4.30 | 150 |
| 5 | 26 | 7/0.16 | 1.00x5.40 | 150 |
| 2 | 24 | 7/0.20 | 1.12x2.34 | 94.2 |
| 3 | 24 | 7/0.20 | 1.12x3.56 | 94.2 |
| 4 | 24 | 7/0.20 | 1.12x4.78 | 94.2 |
| 5 | 24 | 7/0.20 | 1.12x6.00 | 94.2 |
| 2 | 22 | 17/0.16 | 1.28x2.66 | 59.4 |
| 3 | 22 | 17/0.16 | 1.28x4.04 | 59.4 |
| 4 | 22 | 17/0.16 | 1.28x5.42 | 59.4 |
| 5 | 22 | 17/0.16 | 1.28x6.80 | 59.4 |
| 2 | 20 | 26/0.16 | 1.46x3.02 | 36.7 |
| ※The above datasheet is for reference only, please refer to the final specification. | ||||
|
|
