| Brand Name : | XSD |
| Model Number : | Multi Conductor Cable |
| Certification : | UL,CE,ISO:9001 |
| Price : | Negotiate |
| Delivery Time : | 7-14days |
| Payment Terms : | T/T |
| Supply Ability : | 1000000Meters/month |

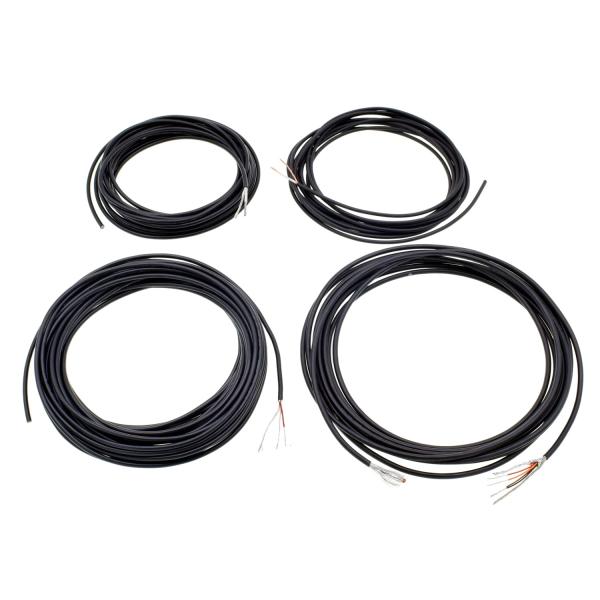

UL2464 80℃ 300V PVC Power Cable AL Braided Copper Shielded
Rated Voltage: 300V
Rated Temperature: 80ºC
Insulation Material: SR-PVC
Jacket Material: PVC
Conductor: Tinned or Bare, Stranded or Solid Copper
Optional: AL-Mylar, Copper Braided, Copper Drain Wire
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance, computer, audio and video, electronic circuits, power supply and signal transmission, power cord, lighting, extension cord, wiring harness, etc.
| Conductor | Insulation | Jacket | Max. Cond. Resistance at 20°C (Ω/km) | |||
| No. of Cores | AWG | Construction (No./mm) | Thickness (mm) | Diameter (mm) | Diameter (mm) | |
| 3 | 28 | 7/0.127 | 0.26 | 0.90 | 4.00 | 239 |
| 4 | 28 | 7/0.127 | 0.26 | 0.90 | 4.80 | 239 |
| 5 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 6 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 8 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 9 | 26 | 7/0.16 | 0.26 | 1.00 | 6.30 | 150 |
| 10 | 26 | 7/0.16 | 0.26 | 1.00 | 6.60 | 150 |
| 11 | 26 | 7/0.20 | 0.26 | 1.00 | 6.60 | 150 |
| 12 | 28 | 7/0.16 | 0.26 | 0.90 | 6.00 | 239 |
| 15 | 24 | 7/0.127 | 0.26 | 1.12 | 8.00 | 94.2 |
| 18 | 28 | 7/0.127 | 0.26 | 0.90 | 7.40 | 239 |
| 20 | 24 | 7/0.20 | 0.26 | 1.12 | 8.50 | 94.2 |
| ※The above datasheet is for reference only, please refer to the final specification. | ||||||
At Multi Conductor Cable, we take great care in packaging and shipping our products to ensure their safe arrival to our customers. Our packaging process follows strict guidelines to protect the cables from any damage during transportation.
Our Multi Conductor Cables are packaged in sturdy and durable materials such as corrugated boxes, wooden crates, or reels, depending on the size and quantity of the cables ordered. Each cable is individually wrapped in protective material to prevent any tangles or damage during transit.
For larger orders, we use pallets to stack and secure the cables for easier handling and transportation. Our packaging also includes clear labeling with product information and handling instructions for our customers' convenience.
We offer various shipping options to meet our customers' needs, including ground, air, and sea transportation. Our team carefully selects the most efficient and cost-effective shipping method based on the destination and urgency of the order.
We also work with trusted and reliable shipping carriers to ensure timely and safe delivery of our Multi Conductor Cables. Our team monitors the shipping process closely and provides tracking information to our customers so they can keep track of their order's progress.
At Multi Conductor Cable, we strive to provide our customers with high-quality products and excellent service. Our packaging and shipping processes are an essential part of this commitment, as we want our customers to receive their Multi Conductor Cables in perfect condition and on time.
|
|
