Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount

Dongguan XSD Cable Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount from wholesalers

    Buy cheap Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount from wholesalers
    • Buy cheap Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount from wholesalers
    • Buy cheap Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount from wholesalers
    • Buy cheap Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount from wholesalers

    Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount

    Ask Lasest Price
    Brand Name : XSD Cable
    Model Number : Communication Connector
    Certification : UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200000PCS/Month
    Delivery Time : 7-30Days
    • Product Details
    • Company Profile

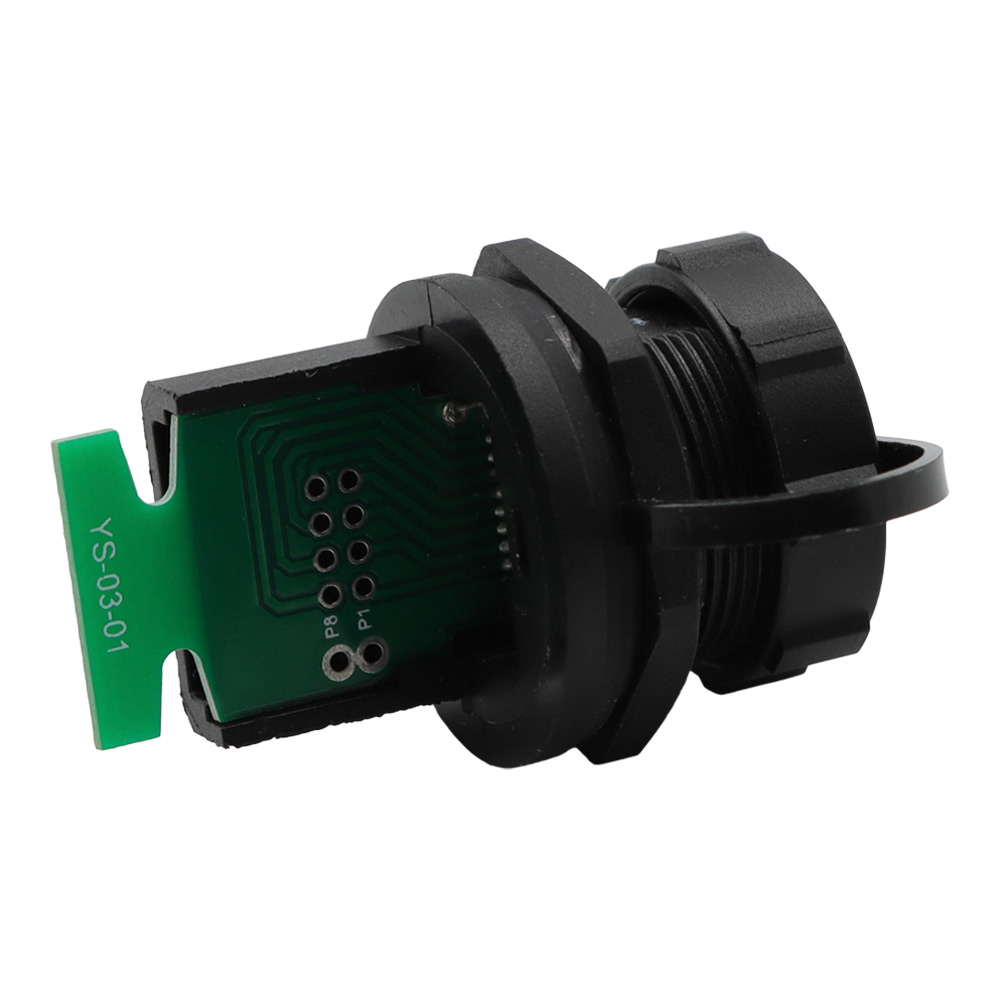

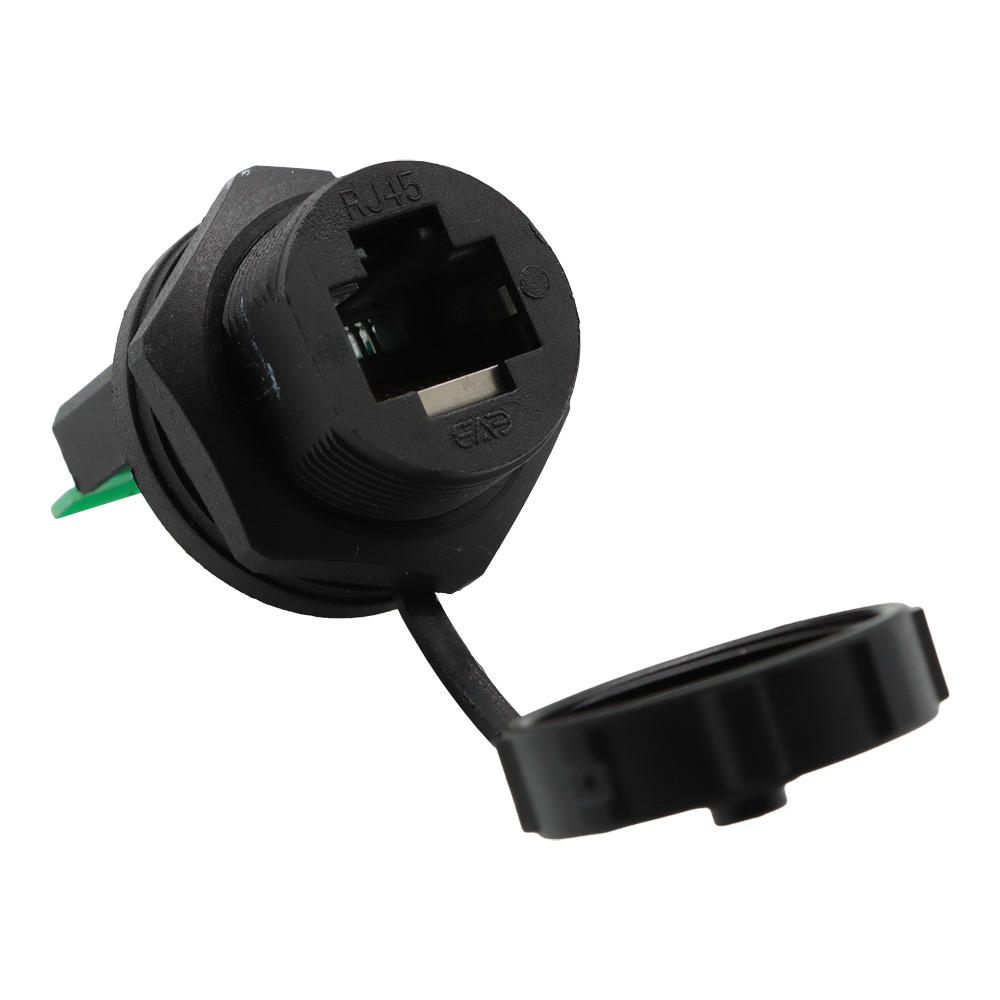

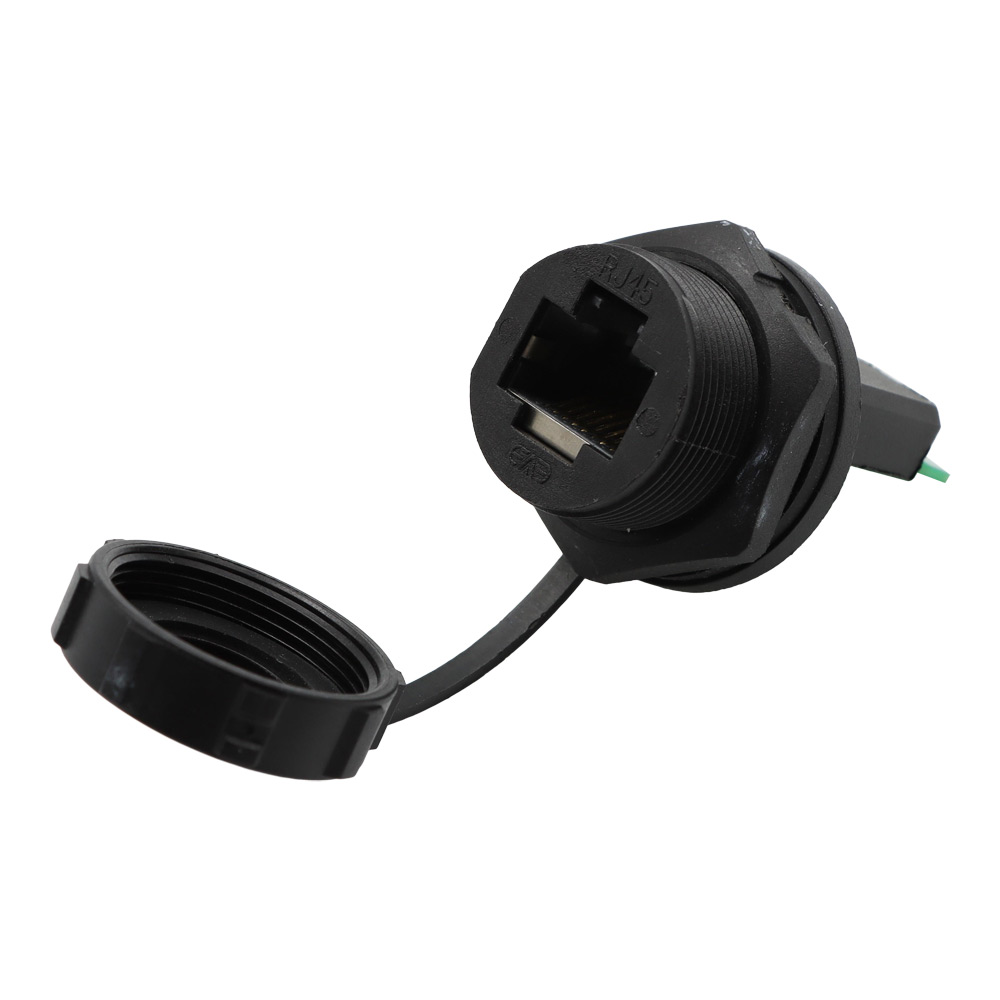

    Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount

    Custom Communication Cable Connectors Type C JST Cat5 Female Rj45 Mount


    ProductBattery Storage Connector
    Plug/SocketGenderMale/Female
    Rated Current60A~500A
    OrientationStraight / Right Angle
    WireModelNSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
    Size1mm2~120mm2
    Terminal/LugModelSC1.5~SC120
    Applicable Wire Range1mm2~120mm2
    FeaturesIP67 Waterproof, Flame Retardant, High Temperature Retardant
    Touch Proof, Safe Handling, Durable Design, Reliable Connection
    Quick Lock, Press-to-Release Design, High Pressure Resistance
    ApplicationSolar Energy Storage System (ESS)
    Energy Storage Cabinet, Battery Pack, Battery Storage Tank
    Energy Storage Converter, Power Energy Storage System
    VerificationUL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
    OEMWelcomed

    Part Number
    Mounting typeMfr. P/N
    ScrewXSD-RJ45-FM001
    Snap

    XSD-RJ45-FM002



    Material

    Shell:High performance engineering plastics

    Contact:Gold-plated copper


    Electrical Performance

    Rated Current:1A

    Rated Voltage:AC500V

    Bandwidth frequency:1-100MHZ

    Insulation Resistance:≥500Ω,Resistance Value≥1000MΩ


    Operating Environment

    Operating Temp.:-40℃~125℃

    Flame Resistance:UL94 V-0

    Waterproof Class:IP65-IP68

    Company profile


    Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

    ★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, Halogen-free Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.

    ★Insulation Materials: PVC/PE/HDPE/XLPE/LSZH/PTFE/PFA/FEP/SILICONE RUBBER/TPU/TPE and so on.


    BUSINESS PHILOSOPHY


    -Committed to providing customers with customized, small batch, multi-variety, one-stop services.

    -Quick response and effective communication, refined services.

    -Low-cost, high-quality, high-reliability products.

    -Deeply involved in the early design and selection of customers.


    FAQ


    Q1: Are you a manufacturer?
    A1: Yes, we are a manufacturer located in Dongguan city of China. We are able to provide OEM/ODM services for wires, cables, custom cable assembly around the world.


    Q2: Can I get a free sample?
    A2: Yes, we are willing to provide sample in stock for free but freight collected. Welcome to contact us for customized products.


    Q3: Is the quality of your product guaranteed?
    A3: Yes, our workshop are equipped with Brand-new and Advanced Machines & Test Equipments. Our production process and quality control are in strictly accordance with the international standards and customers’ requirements.


    Q4: What is the delivery lead time?
    A4: Generally, the lead time is around 10-15 days for wire production, around 20-40 days for cable assembly. It depends on quantity and the complexity of the product.
