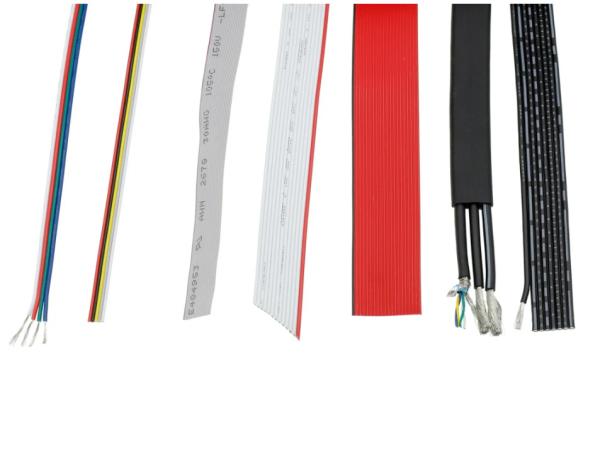

Rainbow Electric Flat Wire Cables , Industrial FEP Ribbon Cable

Flat Rainbow Electric Cable FEP High Temperature 150℃ Industrial Equipment

Product Description:

Construction: Flat wire cables are typically constructed with a flat ribbon of multiple parallel wires that are either stranded or solid. The wires are then coated with insulation material, such as PVC or Teflon, and then sandwiched between two layers of insulation to form a flat and flexible cable.

Features:

Product Name: Flat Wire Cables
Size: 2.5mm
Weight: 3.5kg
Packaging: Roll
Voltage Rating: 300V
Temperature Rating: 105°C
Special Features: Flat Ribbon Cables, Flat Strip Cables, Flat Cable Wires

Technical Parameters:

Conductor				Insulation		Max. Cond. Resistance at 20°C (Ω/km)
No. of Cores	AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
2	28	7/0.127	0.38	0.43	1.24X2.58	239
2	26	7/0.16	0.48	0.43	1.34X2.78	150
2	24	7/0.2	0.60	0.43	1.45X3.04	94.2
2	22	7/0.254	0.76	0.43	1.62x3.34	59.4
2	20	26/0.16	0.94	0.43	1.80X3.70	36.7
2	18	41/0.16	1.18	0.43	2.04X4.23	23.2
3	28	7/0.127	0.38	0.43	1.24X3.92	239
3	26	7/0.16	0.48	0.43	1.34X4.22	150
3	24	7/0.2	0.60	0.43	1.45X4.63	94.2
3	22	7/0.254	0.76	0.43	1.62X5.06	59.4

Rainbow Electric Flat Wire Cables , Industrial FEP Ribbon Cable

FAQ:

Q: Which brand is XSD Cable?: A: XSD Cable is a brand of flat cable.
Q: What is the model number of the flat cable?: A: The model number of the flat cable is Flat cable.
Q: Where is the flat cable produced?: A: The flat cable is produced in Guangdong, China.
Q: What certifications does the flat cable have?: A: The flat cable has UL, CE, and ISO:9001 certifications.
Q: How many flat cables can be produced per month?: A: XSD Cable can produce up to 1000000pcs/month.
