| Brand Name : | XSD Cable |
| Model Number : | Power Connector |
| Certification : | UL,ISO:9001 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 200000PCS/Month |
| Delivery Time : | 7-30Days |

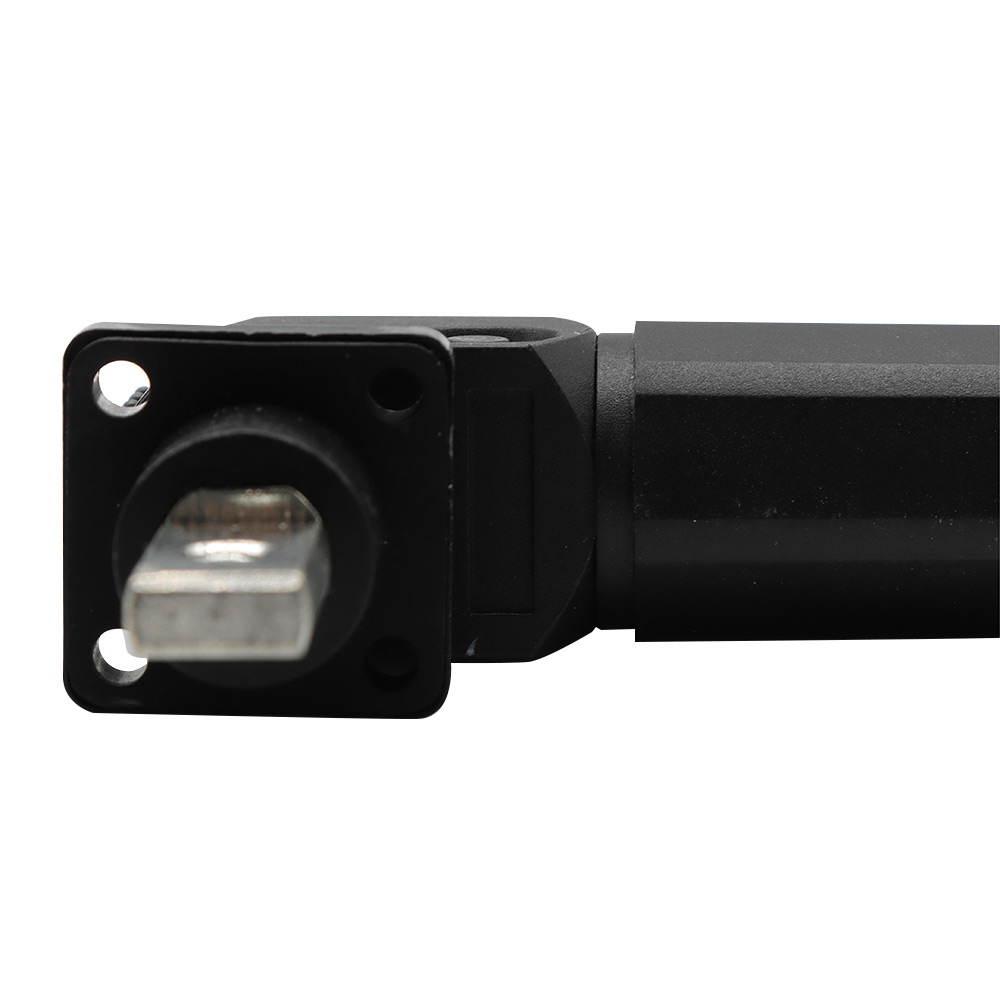

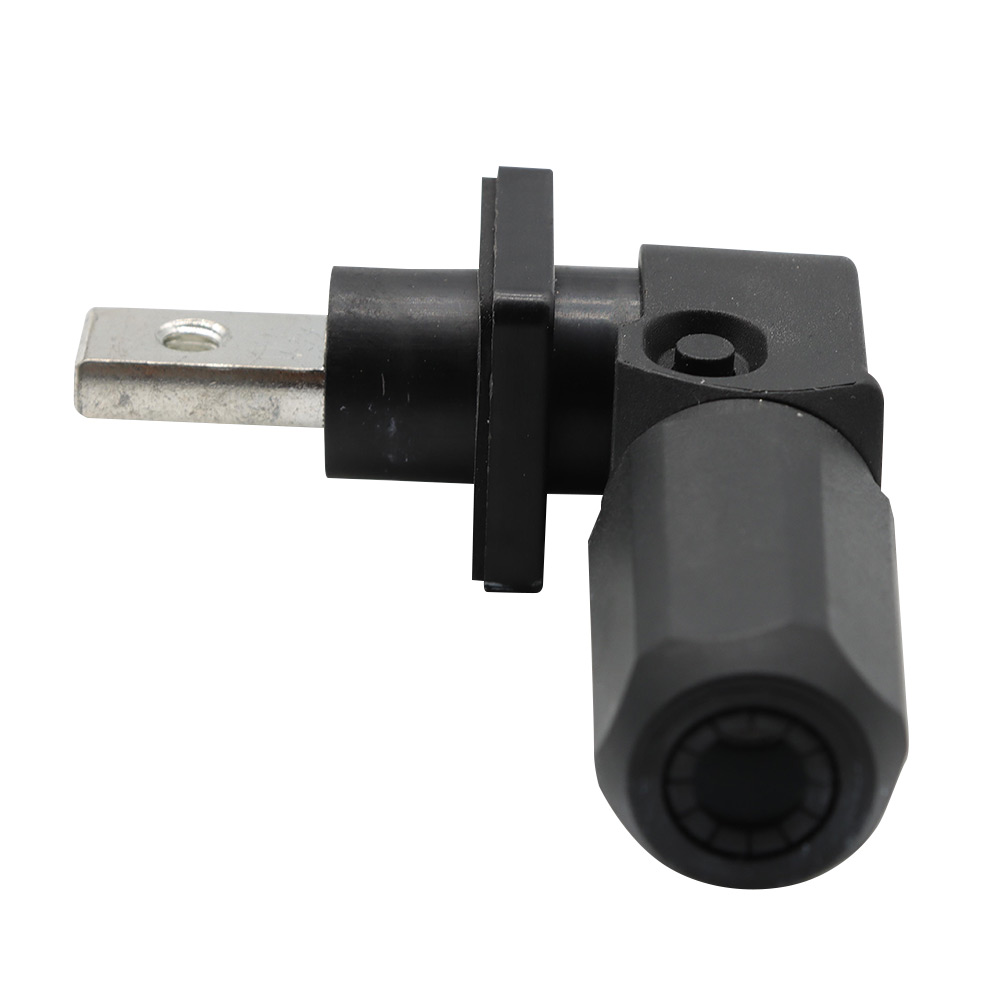

100A DC1000V PA66+30%GF Battery Storage Connector Male/Female IP67 Waterproof
Material
Shell:PA66+30%GF
Electrical Copper Row:Brass,nickel plated
Electrical Performance
Rated Current:60A,100A,120A,150A,200A,250A,300A,350A,400A
Rated Voltage:DC1000V
Impulse Withstand Voltage:AC5000V, Leakage≤1mA
Insulation Resistance:DC2500V, Resistance Value≥1000MΩ
Operating Environment
Operating Temp.:-40℃~125℃
Operating Humidity:5%~95%RH
Flame Resistance:UL94 V-0
Salt Spray Test:48H
| Product | Battery Storage Connector | |||||
| Plug/Socket | Gender | Male/Female | ||||
| Rated Current | 60A,100A,120A,150A,200A,300A,400A | |||||
| Orientation | Straight / Right Angle | |||||
| Wire | Model | NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc. | ||||
| Size | 10mm2,16MM2,25MM2,35MM2,50MM2,70MM2,95mm2 | |||||
| Terminal/Lug | Model | SC10~SC95 | ||||
| Applicable Wire Range | 10mm2~95mm2 | |||||
| Features | IP67 Waterproof, Flame Retardant, High Temperature Retardant | |||||
| Touch Proof, Safe Handling, Durable Design, Reliable Connection | ||||||
| Quick Lock, Press-to-Release Design, High Pressure Resistance | ||||||
| Application | Solar Energy Storage System (ESS) | |||||
| Energy Storage Cabinet, Battery Pack, Battery Storage Tank | ||||||
| Energy Storage Converter, Power Energy Storage System | ||||||
| Verification | UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc. | |||||
| OEM | Welcomed | |||||
Part Number
| Color | Mfr. P/N | Color | Mfr. P/N |
| Black | XSD06R10K0B01 | Red | XSD08R35K1R01 |
| Orange | XSD06R10K0001 | Black | XSD08R50K0B01 |
| Red | XSD06R10K0R01 | Orange | XSD08R50K0001 |
| Black | XSD06R16K0B01 | Red | XSD08R50K0R01 |
| Orange | XSD06R16K0001 | Black | XSD10R70K2B02 |
| Red | XSD06R16K0R01 | Orange | XSD10R70K1002 |
| Black | XSD06R25K0B01 | Red | XSD10R70K1R02 |
| Orange | XSD06R25K0001 | Black | XSD10R95K2B02 |
| Red | XSD06R25K0R01 | Orange | XSD10R95K1002 |
| Black | XSD08R25K2B02 | Red | XSD10R95K1R02 |
| Orange | XSD08R25K1002 | Black | XSD12R70K2B01 |
| Red | XSD08R25K1R02 | Orange | XSD12R70K1001 |
| Black | XSD08R25K0B01 | Red | XSD12R70K1R01 |
| Orange | XSD08R25K0001 | Black | XSD12R95K2B01 |
| Red | XSD08R25K1R01 | Orange | XSD12R95K1001 |
| Black | XSD08R35K0B01 | Red | XSD12R95K1R01 |
| Orange | XSD08R35K0001 |
FAQ
Q1: Are you a manufacturer?
A1: Yes, we are a manufacturer located in Dongguan city of China.
We are able to provide OEM/ODM services for wires, cables, custom
cable assembly around the world.
Q2: Can I get a free sample?
A2: Yes, we are willing to provide sample in stock for free but
freight collected. Welcome to contact us for customized products.
Q3: Is the quality of your product guaranteed?
A3: Yes, our workshop are equipped with Brand-new and Advanced
Machines & Test Equipments. Our production process and quality
control are in strictly accordance with the international standards
and customers’ requirements.
Q4: What is the delivery lead time?
A4: Generally, the lead time is around 10-15 days for wire
production, around 20-40 days for cable assembly. It depends on
quantity and the complexity of the product.
|
|
