professional manufacturer in the field of wire and cable assembly
3 Years
| Ask Lasest Price | |
| Brand Name : | XSD Cable |

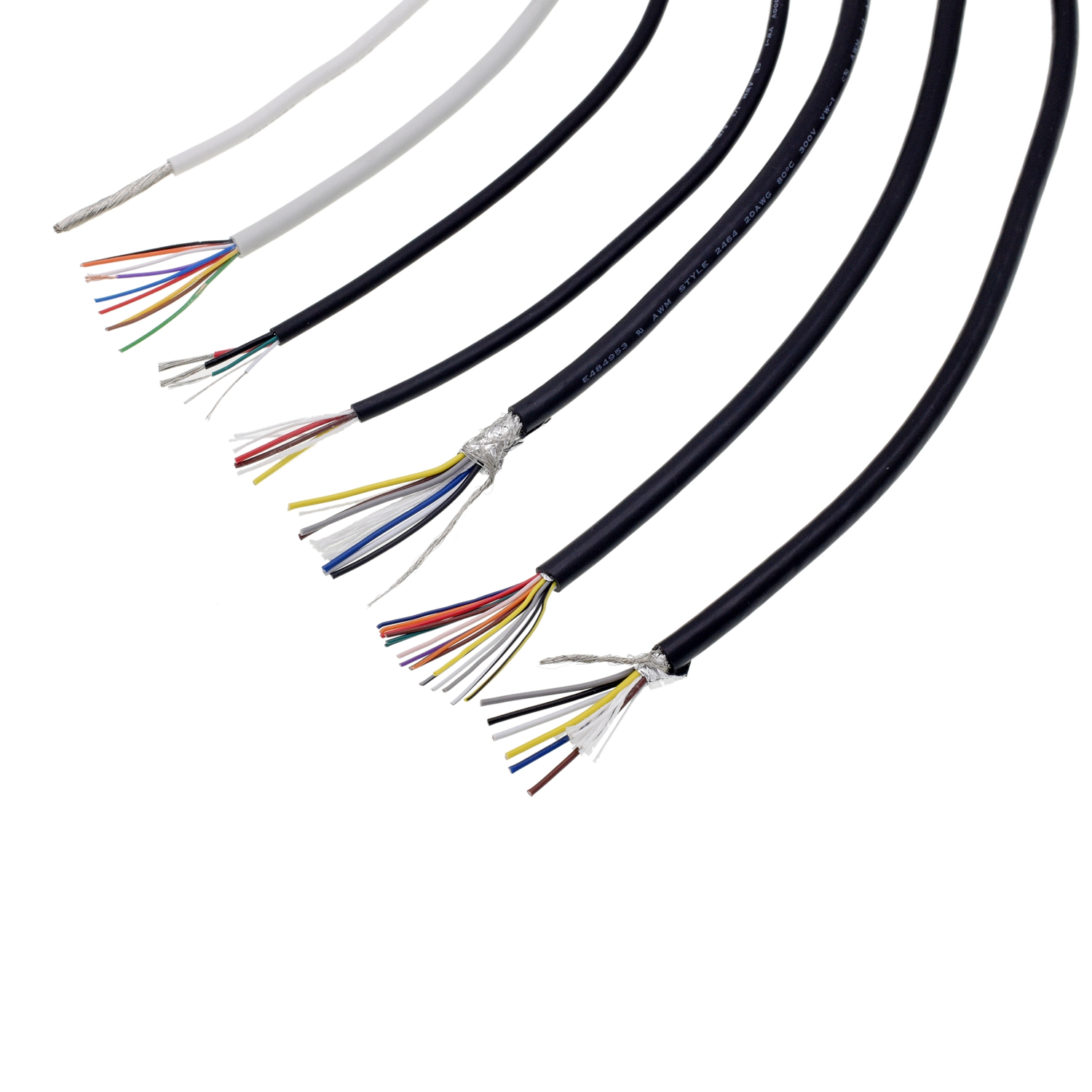

| Model Number : | Multi-conductor Cable |
| Certification : | UL,CE,ISO:9001,IATF:16949 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 5000000meters/month |
| Delivery Time : | 7-12days |
Conductor Size: 28 AWG to 12 AWG
Voltage Rating: 300V
Temperature Rating: -20°C to +80°C
Insulation Material: PVC (Polyvinyl Chloride)
Shielding Material: Aluminum/Mylar foil with a tinned copper braid
Jacket Material: PVC (Polyvinyl Chloride)
Colors: Available in various color options for conductor identification
| Conductor | Insulation | Jacket | Max. Cond. Resistance at 20°C (Ω/km) | |||
| No. of Cores | AWG | Construction (No./mm) | Thickness (mm) | Diameter (mm) | Diameter (mm) | |
| 3 | 28 | 7/0.127 | 0.26 | 0.90 | 4.00 | 239 |
| 4 | 28 | 7/0.127 | 0.26 | 0.90 | 4.80 | 239 |
| 5 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 6 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 8 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 9 | 26 | 7/0.16 | 0.26 | 1.00 | 6.30 | 150 |
| 10 | 26 | 7/0.16 | 0.26 | 1.00 | 6.60 | 150 |
| 11 | 26 | 7/0.20 | 0.26 | 1.00 | 6.60 | 150 |
| 12 | 28 | 7/0.16 | 0.26 | 0.90 | 6.00 | 239 |
| 15 | 24 | 7/0.127 | 0.26 | 1.12 | 8.00 | 94.2 |
| 18 | 28 | 7/0.127 | 0.26 | 0.90 | 7.40 | 239 |
| 20 | 24 | 7/0.20 | 0.26 | 1.12 | 8.50 | 94.2 |
| ※The above datasheet is for reference only, please refer to the final specification. | ||||||
UL AWM Style
| SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953) | ||||||
| Table of UL AWM Recognized Styles | ||||||
| Single-conductor, thermoplastic insulation. | ||||||
| 1007 | 1061 | 1330 | 1333 | 1571 | 10269 | 10702 |
| 1013 | 1180 | 1331 | 1430 | 1589 | 10362 | |
| 1015 | 1185 | 1332 | 1569 | 10070 | 10368 | |
| Multiple-conductor, thermoplastic insulation. | ||||||
| 2464 | 2517 | 2648 | 2678 | 2835 | 20276 | 21370 |
| 2468 | 2547 | 2651 | 2725 | 20080 | 21016 | 21513 |
| Single-conductor, thermoset insulation. | ||||||
| 3173 | 3266 | 3289 | 3321 | 3386 | 3656 | |
| 3196 | 3271 | 3302 | 3385 | 3619 | ||
| Multiple-conductor, thermoset insulation. | ||||||
| 4478 | ||||||
| DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386) | |||||||
| Table of UL AWM Recognized Styles | |||||||
| Single-conductor, thermoplastic insulation. | |||||||
| 1007 | 1015 | 1061 | 1569 | 10070 | 10368 | ||
| 1013 | 1032 | 1185 | 1571 | 10269 | 11627 | ||
| Multiple-conductor, thermoplastic insulation. | |||||||
| 2464 | 2468 | 2517 | 2547 | 2651 | 2725 | 2835 | 20276 |
| Single-conductor, thermoset insulation. | |||||||
| 3173 | 3266 | 3289 | 3321 | 3386 | |||
| 3196 | 3271 | 3302 | 3385 | 3656 | |||
Perfermance
UL 2464 to deliver reliable and efficient signal and power transmission, backed by its compliance with industry-leading safety and quality standards. Whether for residential, commercial, or industrial applications, this cable ensures a seamless and secure connection, allowing your systems to operate at their best.
Crafted with premium materials, this cable exhibits exceptional durability and flexibility, allowing for easy installations and routing. The jacket material offers excellent resistance to abrasion, oil, chemicals, and UV exposure, ensuring reliable performance even in challenging conditions.
The cable's color-coded conductors simplify identification and
streamline installations, making it an excellent choice for
applications requiring multiple connections or complex wiring
setups.
★Main Products: UL AWM Cable, Automotive Wire, Industrial Wire, Hook-up Wire, PV
Wire, Robotic Cable, High Temperature Cable, LSZH Cable,
Halogen-free Cable, Flat Ribbon Cable, Installation Cable, USB
Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness, Cable Harness
and so on.
★Insulation Materials: PVC/PE/PP/XLPE/LSZH/PTFE/PFA/FEP/SILICONE RUBBER/TPU/TPE and so on.
|
|
