professional manufacturer in the field of wire and cable assembly
3 Years
| Ask Lasest Price | |
| Brand Name : | XSD Cable |
| Model Number : | Single Conductor Wire |
| Certification : | UL,CE,ISO:9001 |
| Price : | Negotiate |
| Delivery Time : | 7-30days |
| Payment Terms : | T/T |
| Supply Ability : | 1000000pcs/month |

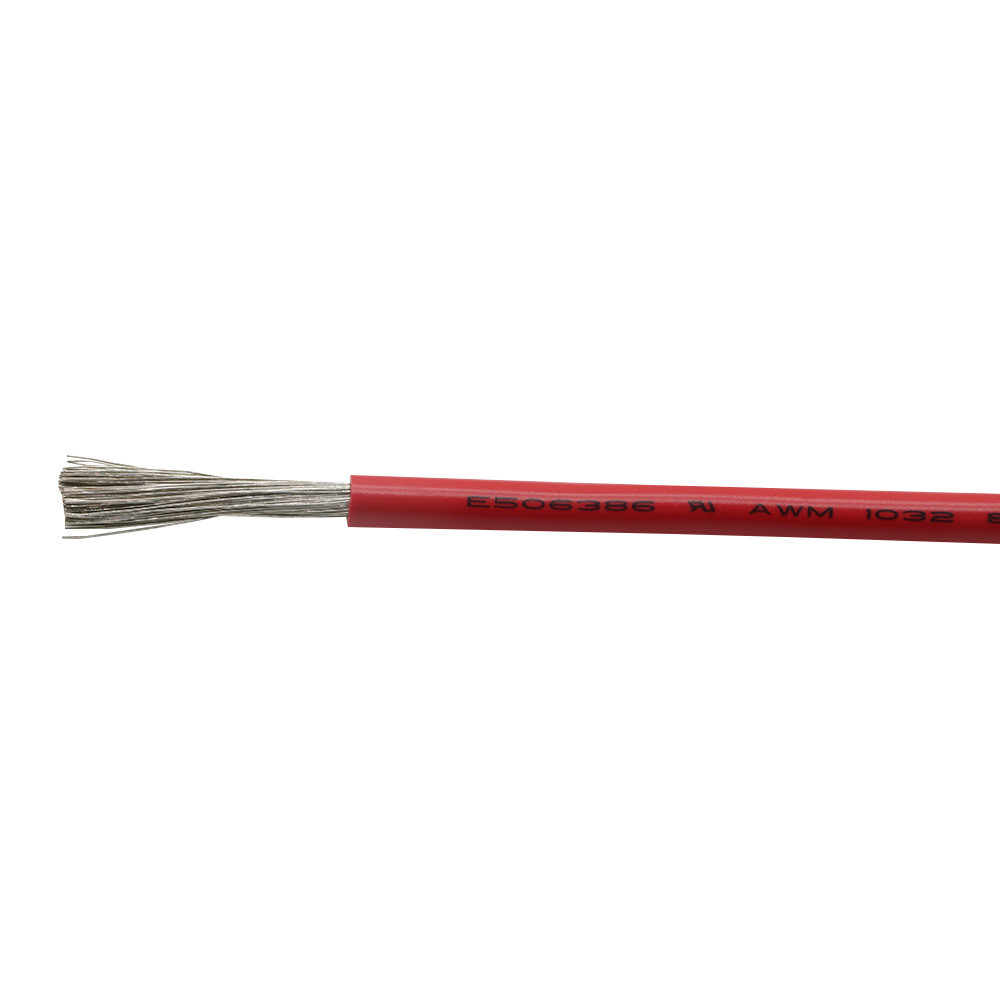

FEP Jacket Copper Single Conductor Wire 18 AWG For Equipment
| Conductor | Insulation | Max. Cond Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 28 | 1/0.32 7/0.12 | 0.32 0.36 | 0.305 0.305 | 0.87 0.91 | 381.00 |
| 26 | 7/0.16 19/0.10 | 0.48 0.48 | 0.305 0.305 | 1.09 1.11 | 150.00 |
| 24 | 1/0.50 7/0.20 19/0.12 | 0.5 0.6 0.6 | 0.305 0.305 0.305 | 1.11 1.21 1.21 | 94.20 |
| 22 | 1/0.65 7/0.254 19/0.15 | 0.65 0.76 0.75 | 0.33 0.33 0.33 | 1.31 1.42 1.41 | 59.40 |
| 20 | 1/0.81 7/0.31 26/0.16 | 0.81 0.93 0.93 | 0.33 0.33 0.33 | 1.47 1.59 1.59 | 36.70 |
| 18 | 1/1.02 7/0.39 19/0.235 | 1.02 1.17 1.17 | 0.33 0.33 0.33 | 1.68 1.83 1.83 | 23.20 |
| 16 | 1/1.30 7/0.49 19/0.30 | 1.30 1.47 1.50 | 0.33 0.33 0.33 | 1.96 2.13 2.16 | 14.60 |
| 14 | 19/0.37 | 1.85 | 0.33 | 2.51 | 8.96 |
The Single Conductor Wire from XSD Cable is perfect for a variety of applications. Our Single-Core Cable is UL, CE and ISO: 9001 certified, and the minimum order quantity is 3050Meters. The packaging details are 31*31*15CM, and the delivery time is 7-30days. We accept payment via T/T, and can supply up to 1000000pcs/month. The conductor stranding is 7x26, and the temperature rating is 90°C. This Single-Conductor Wire also has a CSA type of TEW, with a jacket thickness of 0.015 inches. Price is negotiable. Get your Single-Conductor Wire today!
We provide technical support and service for our single conductor wire products, both online and through our customer service team. Our team is available to answer any questions you may have about our products and installation. We also provide installation instructions and technical documents to help you install the wire correctly.
For more information about our technical support and service, please contact our customer service team or visit our website.
|
|
